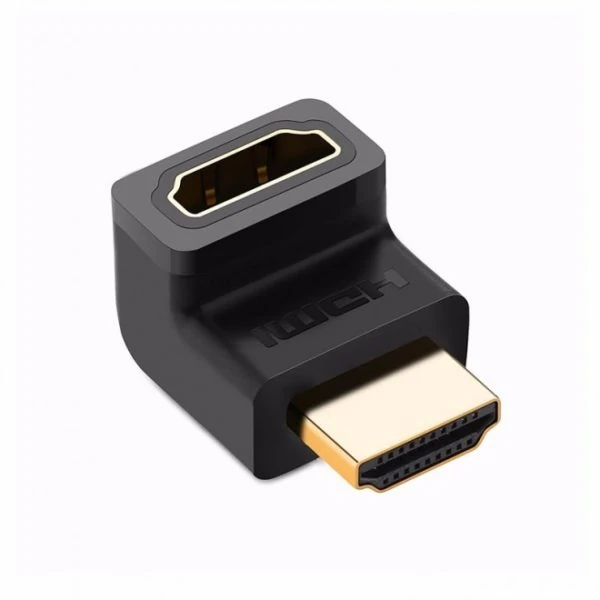

UGREEN HDMI MALE TO FEMALE ADAPTER UP 20110

Description

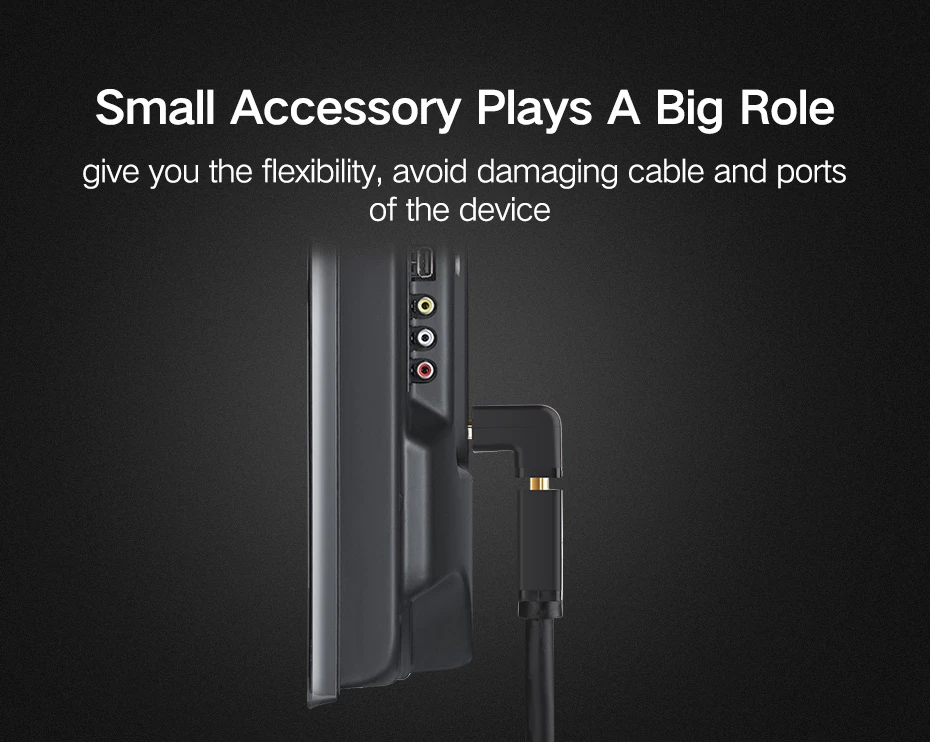

Ugreen 20110 Up-Angle Adapter is an angled HDMI connector for a tight space behind a display or source.

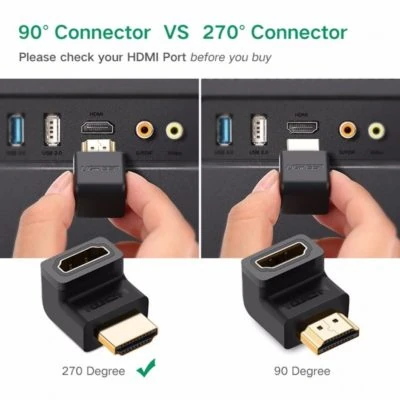

The upward direction is relative to the HDMI socket orientation. Compare the socket with the planned cable route before fitting the adapter behind wall-mounted or closely spaced equipment.

Key Features

• Connection: HDMI male to HDMI female.
• Angle: 90 degrees.
• Orientation: Up.
• Colour: Black.
• Purpose: Cable-direction adjustment.

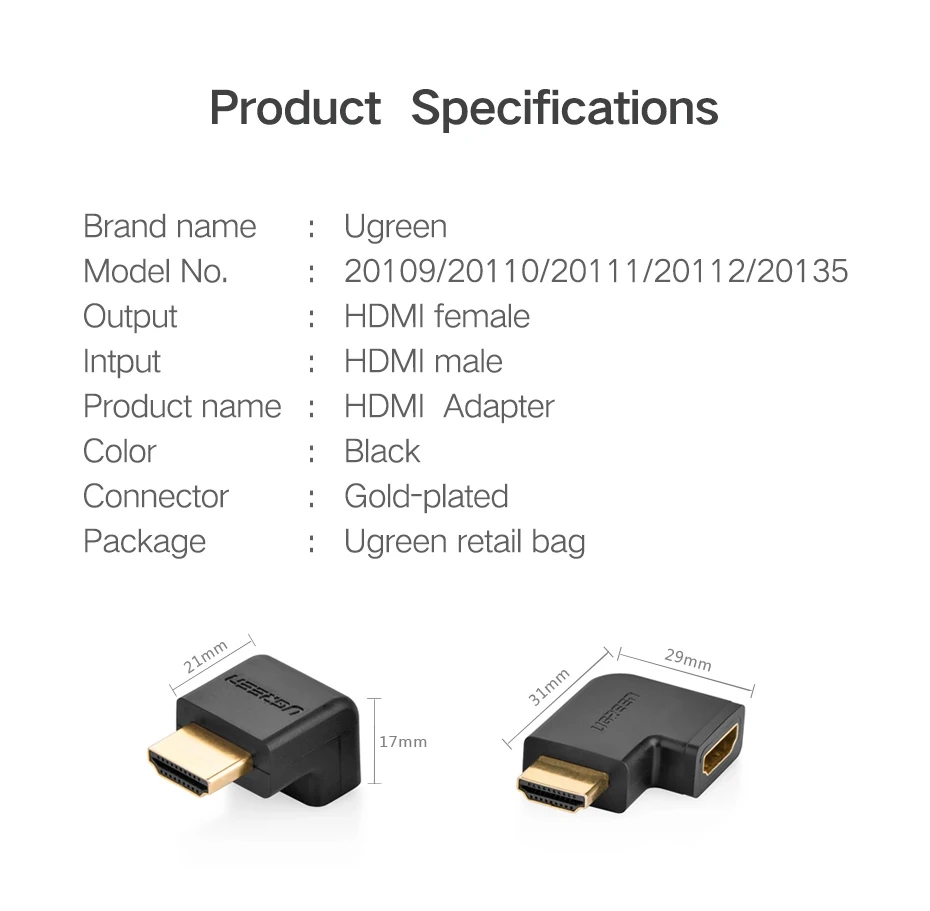

Specifications

Compatibility and Usage

Check both connector shapes and the intended cable route before fitting the adapter. Insert the plugs straight and support the attached cable so its weight does not pull on the equipment socket. An angled adapter should be chosen by the direction it will face on the actual device.

An adapter becomes another part of the complete HDMI connection. The source, display, joined cables and any intermediate equipment determine which picture and audio modes work. A physical connection accessory does not automatically increase signal strength or upgrade equipment beyond the capabilities of the full setup.

This type of accessory is useful when the existing cable arrangement needs a different connection point or direction. Compare the space behind the equipment with the adapter shape before installation. Keep the joined connection accessible so it can be checked or disconnected without pulling on the television, monitor or source port.

Frequently Asked Questions

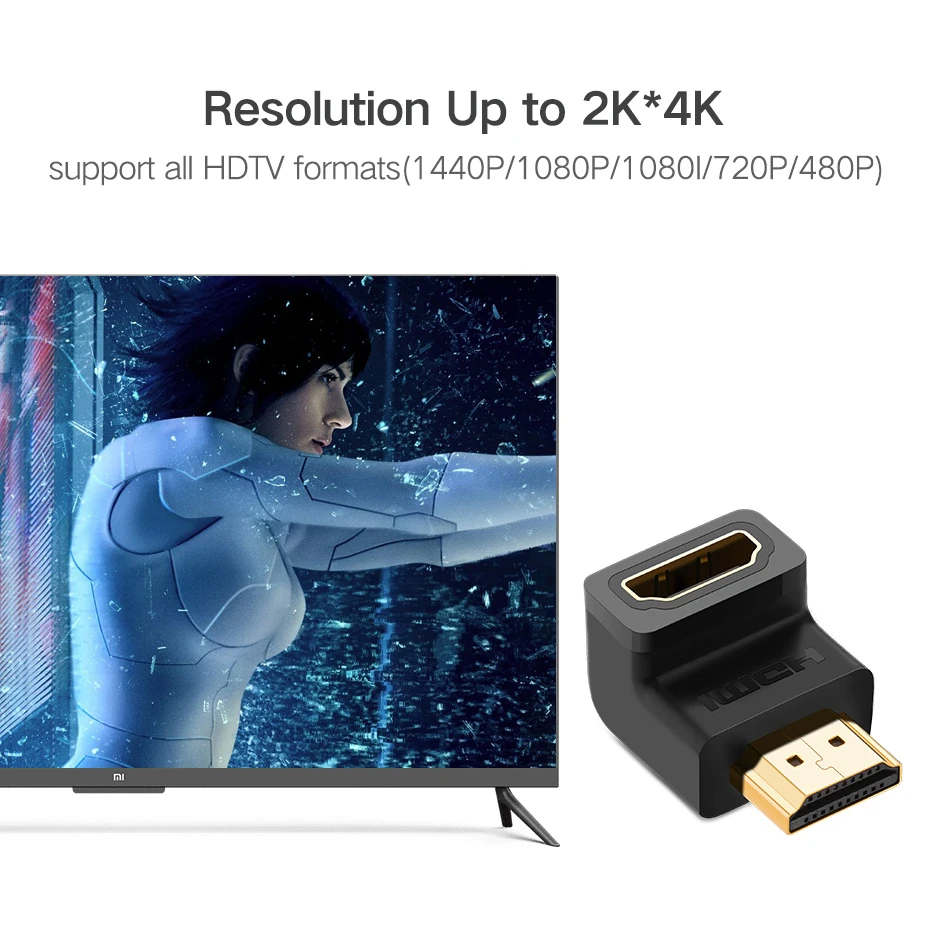

Will the adapter increase picture resolution?

No. The source must generate the selected mode and the display must accept it. The adapter and cables also need to support that mode along the complete connection.

What should I check before joining HDMI cables?

Check connector compatibility and the total cable route. Test the intended picture and audio settings with the actual equipment before placing the connection somewhere difficult to access.

How should I position the attached cable?

Leave a relaxed curve and support the cable where practical. Avoid forcing the adapter against a wall or using it to bend a tightly routed lead into place.

Is an adapter a substitute for measuring the cable route?

No. Check the available space and combined cable reach before fitting it. Leave room for the connector housing and a gentle cable curve so the connection is not pressed tightly against a wall or cabinet.
